Condensate Recovery Systems: Understanding Vented and Pressurized Designs

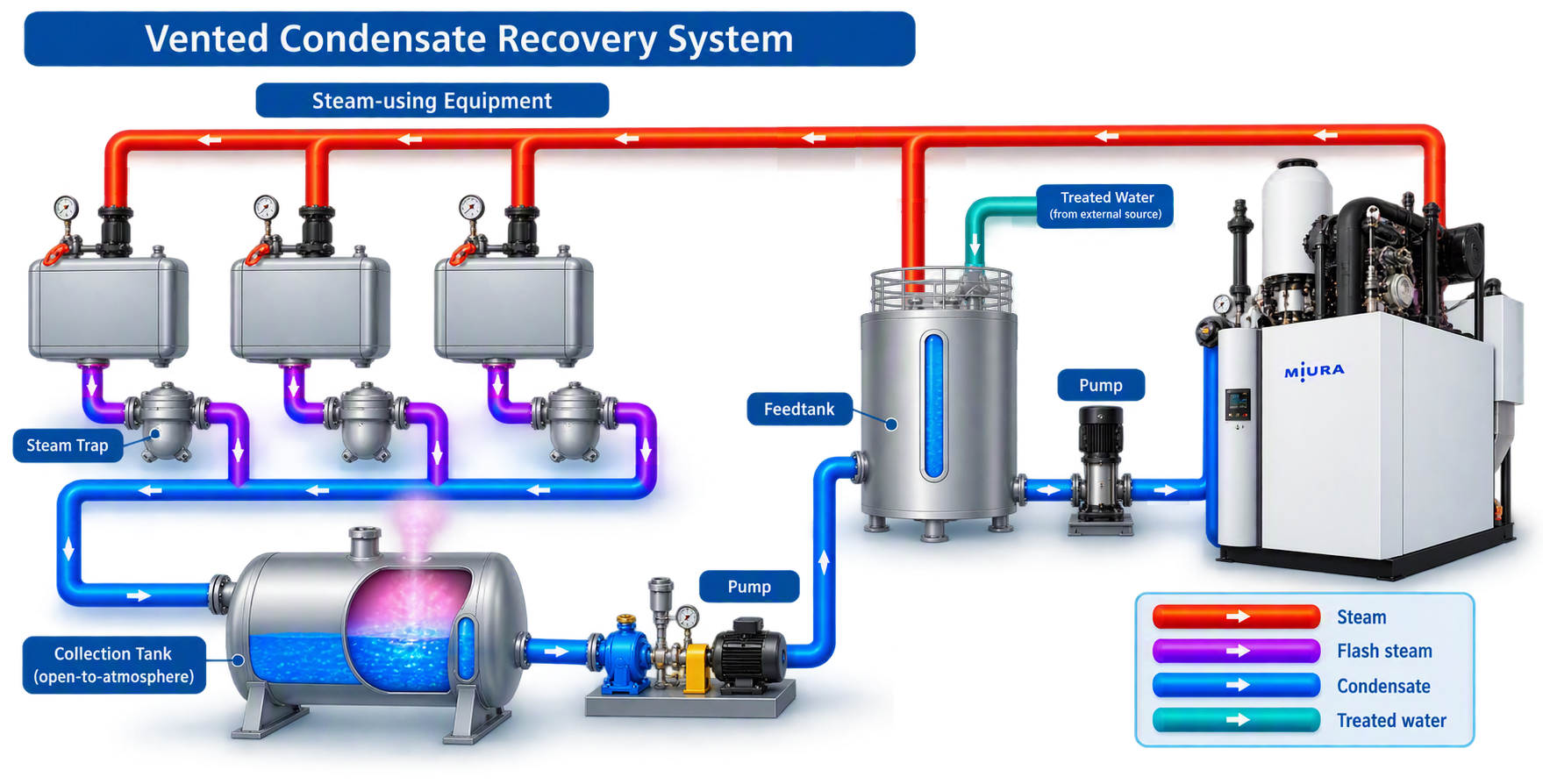

A vented condensate recovery system collects condensate in a receiver or tank that is open to atmospheric pressure. Condensate is typically returned from steam-using equipment through steam traps and then routed to the collection tank before being reused.

Recovered condensate may be utilized for:

• Boiler make-up water
• Feedwater preheating
• Washdown and cleaning applications
• Other hot water uses within the facility

Because the receiver is vented, any flash steam generated when hot condensate enters the tank is released to atmosphere unless additional recovery equipment is installed.

Key Characteristics

• Open-to-atmosphere receiver tank
• Simpler piping and controls
• Lower installation cost
• Easier condensate line sizing
• Higher energy losses from flash steam

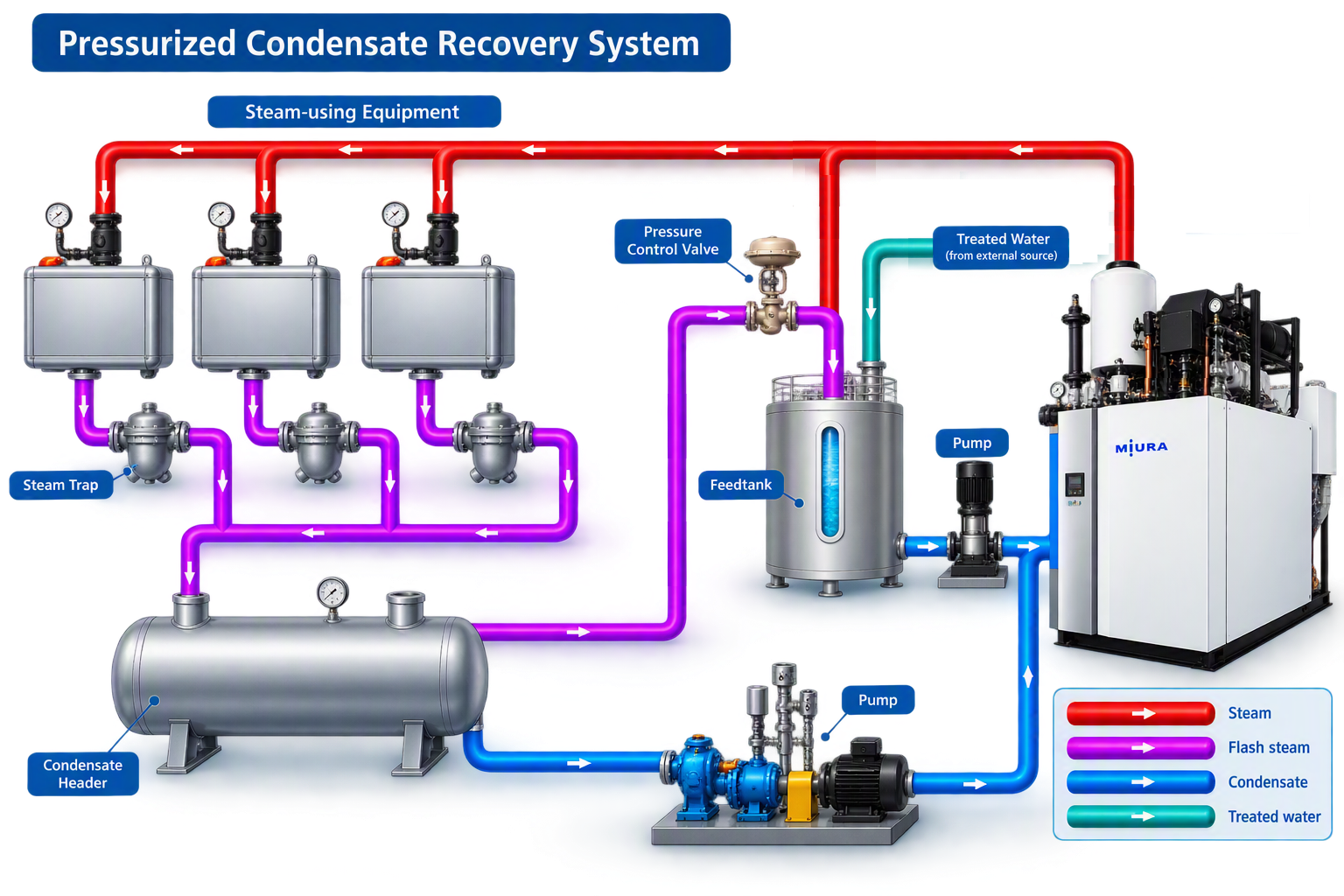

What Is a Pressurized Condensate Recovery System?

In a pressurized condensate recovery system, condensate remains above atmospheric pressure from the point of recovery through the return process. Rather than discharging into a vented receiver, condensate is delivered to a pressurized vessel, deaerator, or directly into the boiler feedwater system.

Since both the condensate and the flash steam remain under pressure, a larger portion of the recovered thermal energy can be reused throughout the plant.

Typical applications include:

• Boiler feedwater systems
• Deaerators
• Flash steam recovery systems
• Cascade steam applications
• Heat recovery equipment

Key Characteristics

• Closed-loop operation
• Higher condensate energy recovery
• Reduced steam venting losses
• Greater water conservation
• Increased design complexity

Condensate Temperature and Energy Recovery

One of the most important differences between vented and pressurized systems is the temperature at which condensate can be recovered.

Vented Systems

When condensate is discharged into an atmospheric receiver, pressures immediately drop to atmospheric conditions. If the condensate temperature exceeds the saturation temperature at atmospheric pressure (212°F / 100°C), a portion of the condensate will instantly flash into steam.

As a result:

• Condensate loses sensible heat
• Flash steam energy is often vented
• Heat losses occur through receivers and return piping
• Recovered condensate temperatures are typically below 212°F

Pressurized Systems

A closed condensate recovery system maintains pressure throughout the return process, preventing much of the flashing that occurs in atmospheric systems.

Because the condensate remains under pressure:

• Higher temperatures can be retained
• More thermal energy is recovered
• Less steam is lost
• Feedwater enters the boiler at a higher temperature

For example, condensate generated from high-pressure steam systems may be recovered at temperatures exceeding 350°F when routed to equipment designed to operate at those conditions, such as a deaerator.

Special Considerations for Condensate Drainage

Many condensate recovery systems rely on the pressure available at the steam trap inlet to move condensate back to the receiver. However, some applications experience insufficient differential pressure due to equipment modulation, vacuum conditions, or excessive return-line backpressure.

In these situations, specialty drainage equipment such as mechanical pump/trap assemblies can be utilized. These devices automatically balance with the operating pressure of the steam-using equipment, allowing condensate removal even when process pressures fluctuate or fall below atmospheric pressure.

When properly applied, condensate can continue to drain by gravity regardless of whether the equipment is operating under positive pressure or vacuum conditions.

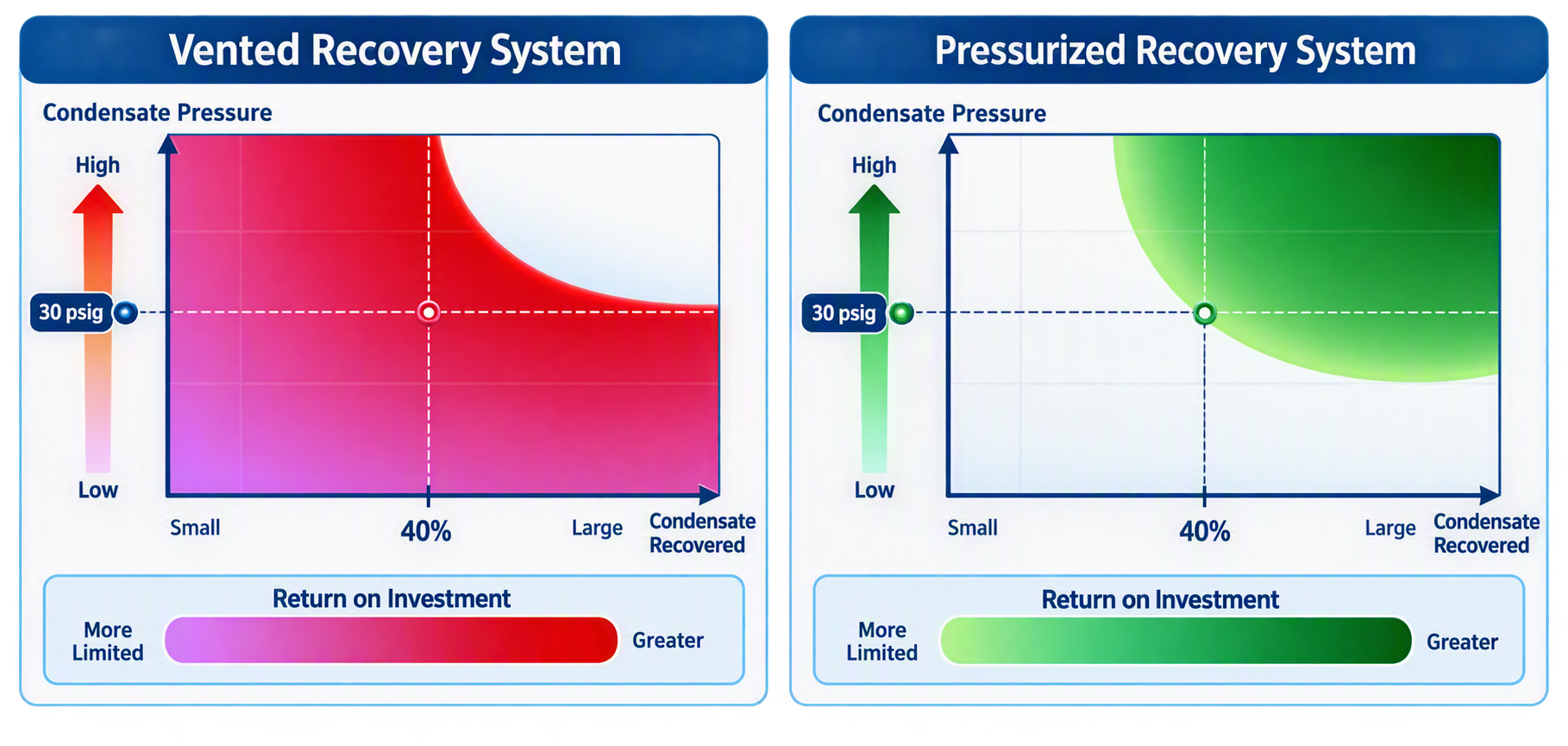

Choosing Between Vented and Pressurized Recovery

The most suitable recovery strategy depends on the facility's operating conditions and economic objectives. While pressurized systems typically deliver greater energy savings, they also require a higher initial investment and more complex design.

Factors commonly evaluated include:

Energy Recovery Potential

Higher steam pressures generate larger quantities of flash steam, which increases the value of a pressurized recovery system.

Backpressure Sensitivity

Some steam-using equipment may require special attention to prevent excessive backpressure from affecting performance.

Number and Size of Loads

The quantity of condensate generated and the distance it must be transported can influence system selection.

Water Conservation Goals

Facilities focused on reducing make-up water usage often benefit from maximizing condensate return.

Flash Steam Utilization

If flash steam can be reused elsewhere in the plant, a pressurized system may provide significant additional savings.

Advantages and Limitations of Vented Recovery Systems

Advantages

• Lower equipment and installation costs
• Simpler controls and operation
• Easier piping design
• Straightforward maintenance requirements

Limitations

• Reduced energy recovery
• Loss of flash steam to atmosphere
• Greater exposure of condensate to oxygen
• Increased corrosion potential
• Visible steam plumes around receiver tanks

Vented systems are often selected when steam pressures are relatively low or when the projected energy savings do not justify the cost of a closed recovery system.

Advantages and Limitations of Pressurized Recovery Systems

Advantages

• Higher thermal energy recovery
• Increased boiler efficiency
• Reduced make-up water demand
• Minimal vented steam losses
• Improved plant environment due to reduced steam plumes
• Lower oxygen exposure and reduced corrosion potential

Limitations

• Higher installation costs
• More complex controls and piping
• Specialized pressure management requirements
• Two-phase flow considerations during design

Although the initial investment is typically greater, facilities with substantial condensate loads frequently achieve significant long-term operating savings through improved heat recovery.

Typical Applications

Vented Recovery Systems

Commonly used for:

• Boiler make-up water
• Feedwater preheating
• General hot water services
• Small to medium steam systems

Pressurized Recovery Systems

Commonly used for:

• High-pressure steam systems
• Direct feed to deaerators
• Energy recovery projects
• Flash steam recovery installations
• Facilities seeking maximum thermal efficiency

Comparison Summary

* Actual recovery temperature depends on operating pressure and the temperature limitations of pumps, valves, deaerators, and other system components.

Key Takeaway

Vented condensate recovery systems offer a simple and economical solution for many steam applications. Pressurized condensate recovery systems require greater investment and engineering consideration but can dramatically increase both water and energy recovery. The best approach depends on steam pressure, recovery volume, facility objectives, and the overall economic return of the project.
