When steam gives up its heat to a process, it condenses back into water. Once this condensate reaches a steam trap, it must be discharged from the system. From there, the condensate follows one of two paths:

• It can be sent directly to drain, which discards both water and valuable thermal energy.
• It can be collected and transported through a condensate recovery system so the water and heat can be reused.

Recovering condensate is generally the preferred approach because it reduces water consumption, lowers boiler fuel requirements, and improves overall system efficiency.

Understanding Two-Phase Flow

The piping that transports discharged condensate is commonly referred to as condensate recovery piping or condensate return piping. Unlike typical water distribution systems, these lines often carry a mixture of liquid condensate and steam simultaneously.

A flow stream containing both liquid and vapor is known as two-phase flow.

Because two-phase flow behaves differently than water-only flow, condensate recovery piping cannot be sized using ordinary liquid piping methods alone. Specialized calculations are required to account for the interaction between condensate and steam within the same piping network.

The internal flow pattern can take several forms depending on operating conditions, including:

• Stratified flow
• Mixed flow
• Intermittent flow
• Annular flow

The actual flow regime is influenced by factors such as:

• Pipe diameter
• Condensate flow rate
• Pressure
• Flash steam generation rate
• Relative quantities of liquid and vapor

These variables significantly affect pressure drop, velocity, and piping requirements.

Why Steam Exists in Condensate Return Lines

It may seem unusual that steam is present downstream of a steam trap, but in most condensate recovery systems this is completely normal.

The reason is a phenomenon called flash steam generation.

Condensate formed in a process operating at elevated pressure contains a substantial amount of thermal energy. When that condensate passes through a steam trap and enters a lower-pressure return line, the pressure decreases instantly while the temperature remains initially unchanged.

Because the condensate now contains more heat energy than it can retain at the lower pressure, a portion of the liquid immediately re-evaporates into steam.

This newly formed vapor is called flash steam.

Flash steam is not a different type of steam. The term simply describes how the steam was produced. Once formed, its thermodynamic properties are identical to steam generated in a boiler at the same pressure.

The Impact of Flash Steam on Pipe Sizing

One of the most important considerations in condensate recovery design is that steam occupies significantly more volume than liquid water.

At typical recovery line pressures, steam may occupy dozens or even hundreds of times more space than the condensate from which it was formed.

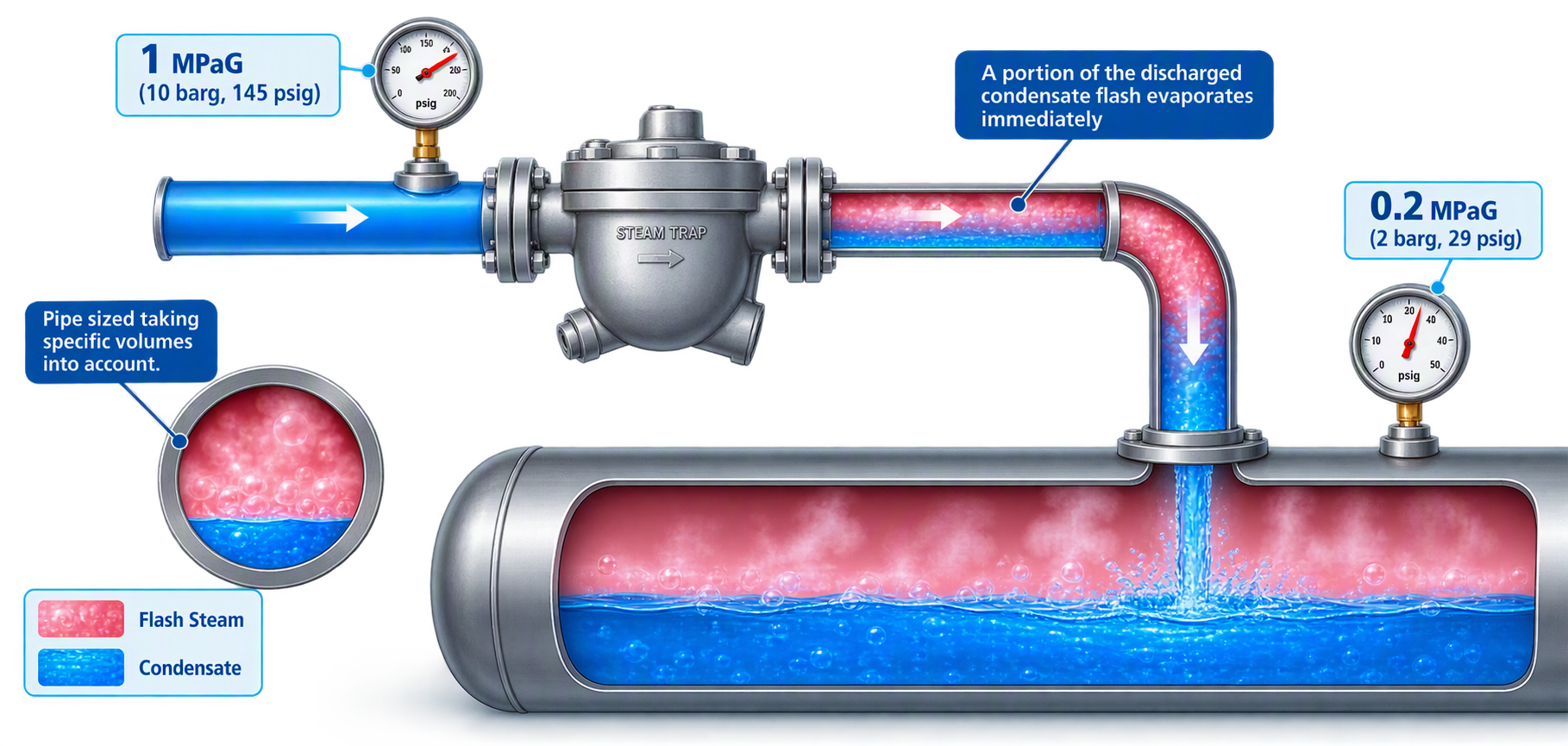

For example, condensate discharged from a system operating at 145 psig into a recovery line operating at 29 psig may produce approximately 10% flash steam by mass.

However, because steam occupies much more volume than liquid water, the actual volume inside the pipe may consist primarily of steam rather than condensate.

As a result, pipe sizing must account for the total volume of both phases, not just the liquid condensate flow rate.

Ignoring flash steam can lead to:

• Excessive flow velocities
• High pressure losses
• Increased system backpressure
• Reduced steam trap performance
• Water hammer and noise issues

When Flash Steam Is Not Present

In rare situations, condensate may be cooled below its saturation temperature before entering the return line.

This condition is known as subcooled condensate.

When condensate is sufficiently subcooled, flash steam will not form after the pressure reduction. Under these circumstances, the return piping behaves much more like conventional water piping and can be analyzed using liquid-flow methods.

Most operating steam systems, however, discharge condensate at or near saturation temperature, meaning flash steam generation should generally be expected.

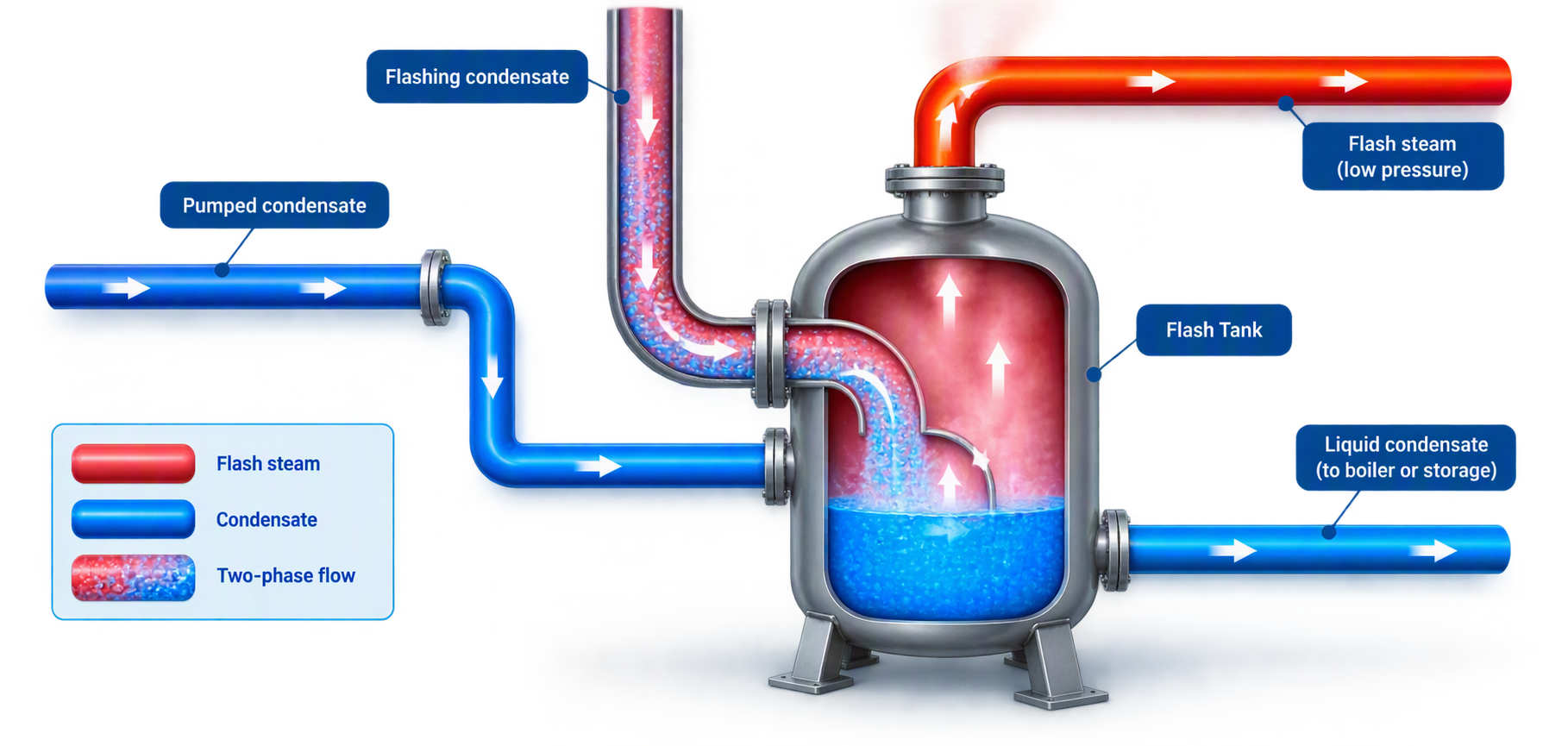

Using Flash Tanks to Improve Recovery

A common method of managing flash steam is the installation of a flash tank.

A flash tank intentionally separates vapor from liquid condensate after discharge from the steam traps.

Inside the vessel:

• Flash steam rises to the upper portion of the tank.
• Liquid condensate settles at the bottom.

Once separated, each phase can be handled independently.

The recovered flash steam may be used for:

• Low-pressure heating applications
• Feedwater preheating
• Process heating requirements
• Other low-pressure steam users

The remaining liquid condensate can then be returned to the boiler system or condensate storage equipment.

Because the condensate leaving the flash tank is no longer flashing, the downstream liquid piping can often be designed using conventional water piping practices.

Evaluating Recovery Strategies

The best condensate recovery approach depends on the specific application and facility layout.

When significant flash steam energy is available, system designers typically evaluate:

Option 1: Local Flash Steam Recovery

Separate the flash steam near the source and use it nearby.

Advantages

• Recovers additional energy
• Reduces wasted steam
• Improves boiler efficiency
• May reduce overall operating costs

Option 2: Direct Condensate Return

Transport the flashing condensate back to a central recovery location or boiler plant.

Advantages

• Simpler system arrangement
• Fewer pieces of equipment
• Lower maintenance requirements

The optimum solution is determined by evaluating:

• Flash steam quantity
• Distance to the boiler plant
• Available low-pressure steam loads
• Pumping requirements
• Installation cost
• Operating cost

Long condensate return lines carrying flashing condensate require special attention to minimize velocity-related problems and water hammer potential.

Recommended Pipe Sizing Approach

Condensate recovery piping should be sized based on both the liquid condensate flow and the flash steam volume expected within the system.

A typical design process includes:

1. Determining condensate flow rate.
2. Calculating flash steam generation at the expected operating pressures.
3. Establishing the volume ratio between steam and condensate.
4. Evaluating acceptable pipe velocities.
5. Verifying pressure losses throughout the return system.
6. Selecting a pipe size that satisfies both velocity and pressure-drop requirements.

This approach provides a more accurate representation of actual operating conditions than water-only calculations.

Additional Design Considerations

Several real-world factors can increase the required piping capacity over time.

Steam Trap Leakage

Failed or bypassed steam traps may allow live steam to enter the condensate return system. This additional vapor increases velocity and pressure losses throughout the piping network.

Corrosion and Fouling

Scale, corrosion products, and sediment accumulation can reduce the effective internal diameter of piping. As the available flow area decreases, velocity and pressure drop increase.

Future System Expansion

If future equipment additions are anticipated, engineers may choose to provide additional piping capacity to accommodate higher condensate loads later.

Key Takeaways

• Condensate recovery piping frequently operates as a two-phase flow system containing both condensate and flash steam.
• Flash steam forms whenever high-temperature condensate is exposed to a lower pressure.
• Pipe sizing must account for the volume of both liquid and vapor phases.
• Flash steam can represent a small percentage of mass while occupying most of the available pipe volume.
• Flash tanks allow flash steam and condensate to be separated and utilized more effectively.
• Proper sizing helps reduce backpressure, minimize water hammer, and improve overall energy recovery performance.
